Can your machine cut fine, dense, or pure graphite without cracking? After 6+ years in the graphite profile machining industry, I have witnessed numerous expensive errors made by employing the improper cutting process. The right graphite profile cutting solution will give you clean, smooth cuts every time.
In this article, I will explain which grades of graphite a graphite profile cutting solution can process. I’ll review the best equipment, crucial features, genuine use cases and how to choose the ideal cutting partner for your requirements.

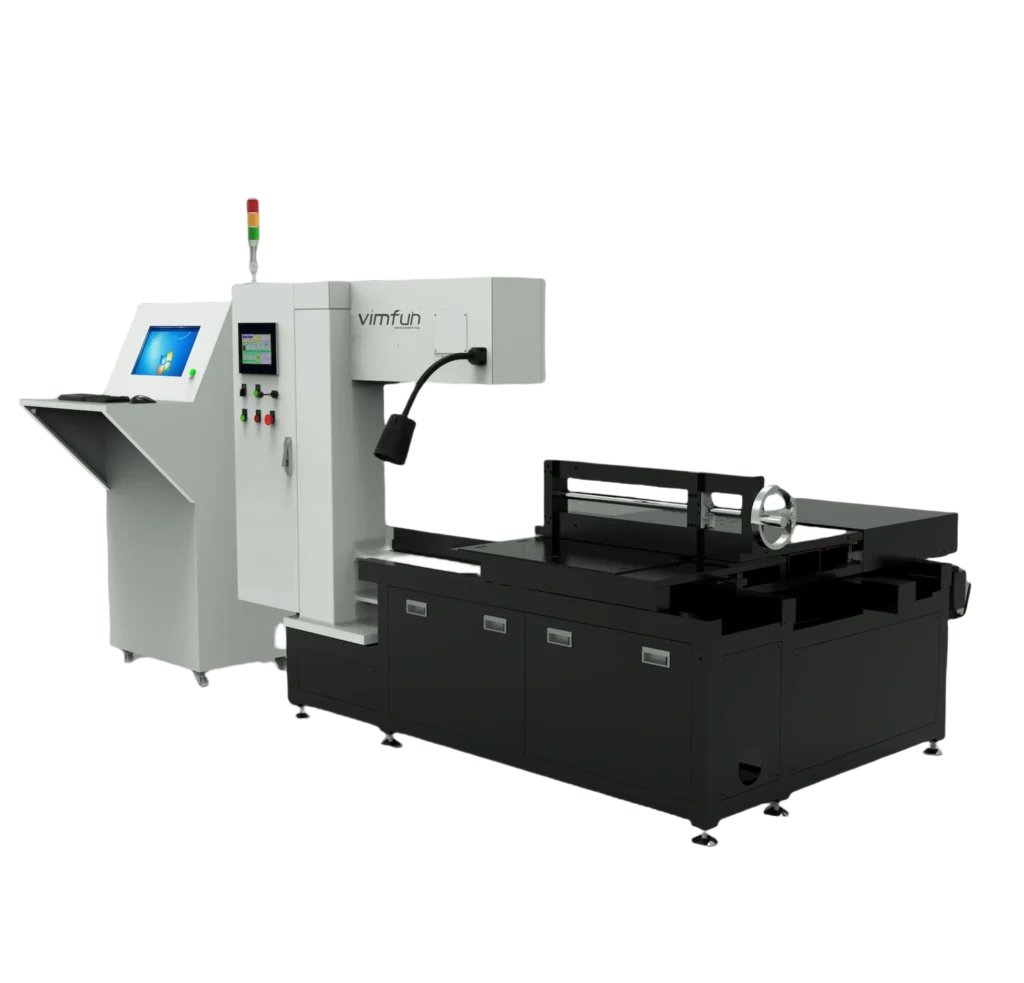

What Is a Graphite Profile Cutting Solution?
A graphite profile cutting solution is a complete industrial cutting system. It gives form to graphite and makes precise cuts. Graphite is brittle and will wear. It requires specific tools. Normal metal cutting machines have a hard time cutting graphite. Graphite contour cutting machine with diamond wire for neatly cutting graphite.
It maintains close tolerances and clean edges. These systems are employed in semiconductors, aerospace and EDM tooling. Cutting technique has to be adapted to the graphite grade. Fine-grain, isostatic, extruded or high-purity – each grade requires different settings. Modern CNC diamond wire machines are completely automated and cut intricate designs.
Key Specs of Industrial Graphite Cutting Systems
| 特徴 | Standard Range | High-End Range | Unit |
| Grain Size Handled | 10–50 µm | 1–10 µm (ultra-fine) | micrometers |
| Cutting Tolerance | ±0.1 mm | ±0.01 mm | mm |
| ワイヤー径 | 0.3–0.5 mm | 0.08–0.2 mm | mm |
| Max Block Size | 500 × 500 mm | 1000 × 1000 mm | mm |
| Graphite Density Range | 1.6–1.8 g/cm³ | 1.8–1.95 g/cm³ | g/cm³ |
| Surface Finish (Ra) | 1.6–3.2 µm | 0.4–0.8 µm | µm |
Which Graphite Grades Can a Diamond Wire Saw Cut?
This is a major question in the 精密グラファイト切断 business. It depends on the machine and the wire and the parameters of the procedure. A diamond wire saw for graphite can cut a wide variety of grades. This is done without chipping or damaging the surface. Fine-grain graphite consists of very small particles, less than 10 µm.
This is the most frequent grade used for high-precision work. Dense isostatic graphite needs a lower feed rate and higher wire tension . High purity graphite has to be cut cleanly. No particles of metal may contact it. Extruded graphite is simpler to machine. But nevertheless consistent wire speed is needed. The correct graphite wire saw machine will change its parameters for each grade.
What Makes Fine-Grain Graphite Harder to Cut?
The particles of fine-grain graphite are close together. This makes it powerful.” But it does also chip at the corners easily.
- Cut speed must be reduced 20-40% compared to coarse-grain grades
- A wire tension must be right to prevent small fractures
- Need more coolant flow to deal with heat and dust
- Use thinner wire sizes for improved surface polish
Graphite Grades and Cutting Parameters
| Graphite Grade | Grain Size | Density (g/cm³) | Wire Size | フィード・レート |
| Extruded Graphite | 50–100 µm | 1.60–1.70 | 0.3–0.5 mm diamond wire | 速い |
| Molded Graphite | 20–50 µm | 1.70–1.80 | 0.2–0.4 mm diamond wire | ミディアム |
| Isostatic Graphite | 5–20 µm | 1.80–1.90 | 0.1–0.3 mm diamond wire | Slow–Medium |
| Fine/Ultra-Fine Graphite | 1–10 µm | 1.85–1.95 | 0.08–0.2 mm diamond wire | 遅い |
| High-Purity Graphite | <5 µm | 1.88–1.95 | Ultra-fine diamond wire | Very Slow |
How Does Dense Graphite Affect the Cut?
Graphite is harder when it is dense. It wears out the wire quicker. It also adds greater stress on the equipment.
- Very consistent density in Isostatic Pressing – good for accurate cutting
- More density equals longer cut times, but a superior finish.
- Dense grades have a shorter wire life so budget for more adjustments
- Best for dense grades: Industrial graphite cutting equipment with servo tension handles
How Does a CNC Diamond Wire Cutting Machine Work on Graphite?
の CNCダイヤモンドワイヤー切断機 runs a diamond coated wire at high speed. The wire is laid on the surface of the graphite. The CNC controls the X, Y and Z axis. It follows a predetermined cutting route with high precision. The wire removes material by rubbing, not by melting or pressing. This is why it pairs nicely with brittle graphite.
It doesn’t fracture the material. It can cut out curved shapes and complex profiles. This is not possible with normal saws. The feed rate, wire speed, tension and coolant are set by the CNC. This makes all the cuts consistent. This provides a smooth surface which seldom requires further polishing.
Comparison: CNC Diamond Wire Cutting vs Other Methods
| Method | 精度 | 表面品質 | マテリアル ロス | 最適 |
| CNC Diamond Wire Saw | 非常に高い | 素晴らしい | 非常に低い | Fine, dense, pure graphite |
| バンドソー | ミディアム | 粗い | ミディアム | Extruded graphite blocks |
| Milling (CNC Router) | 高い | 良い | Medium–High | Complex 3D profiles |
| ウォータージェット切断 | ミディアム | 中程度 | 低い | Soft graphite grades |
| EDMワイヤーカット | 非常に高い | 素晴らしい | 非常に低い | Ultra-thin profiles |
Best results are obtained with a CNC diamond wire cutting machine for fine pure graphite. Cheaper band saws and routers may split fine grades. EDM is slow and expensive for big blocks of material yet accurate.
Advantages and Disadvantages of Diamond Wire Graphite Cutting
利点:
- Cuts all grades – fine, dense, and high-purity
- Very minimal material loss – Saves expensive graphite
- No heat zone No graphite structural damage
- Ideal for batch manufacturing – cuts repeat well
- Works with curved and contoured profiles
短所:
- More expensive machine than basic saws
- Wire wear is quicker with dense grades
- Slower feed for ultra-fine grades
- Wire tension should be checked regularly
Key Sectors That Use Graphite Profile Cutting
- Semiconductor Industry – Pure Graphite for Furnace Fixtures and Carriers
- Aerospace & Defence – High-heat parts made from thick graphite
- EDM tooling – graphite electrodes fine grain
- Solar energy Isostatic graphite for crucibles for crystal formation
- Metallurgy – Graphite Dies and Moulds
Where Is a Graphite Block Cutting Machine Used in Real Industry?
Graphite block cutting machine is used in numerous industries. In semiconductors, ultra-fine graphite is sliced to wafer carriers to tolerances of less than 0.05 mm. Diamond wire saws shape isostatic crucibles to smooth, clean surfaces in solar.
Casting in metallography is performed in large blocks. Aerospace companies slice thick graphite into nozzle pieces. A faulty cut wastes valuable material, and generates expensive downtime. It’s always correct the first time when you are saving money.
Case Studies: Graphite Cutting in Real Industry
| 産業 | 応用 | Graphite Grade | Machine Used | 結果 |
| 半導体 | Wafer carrier tray | Ultra-fine isostatic | CNCダイヤモンドワイヤーソー | ±0.02 mm tolerance achieved |
| Solar Energy | Crystal growth crucible | High-purity isostatic | Graphite wire saw machine | Zero contamination, smooth finish |
| EDM Tooling | Electrode profiles | Fine-grain molded | Graphite contour cutting machine | 30% faster electrode production |
| 航空宇宙 | Rocket nozzle insert | Dense graphite | Industrial graphite cutting equipment | Passed all heat stress tests |
| Metallurgy | Casting mould block | Extruded graphite | CNC graphite block cutting machine | Long mould life, low surface Ra |
How to Pick the Right Graphite Cutting Solution for Your Industry
The correct machine depends on your grade of graphite, part form, volume and tolerance requirements.
- Choose a machine with clean coolant and sealed cutting areas for high quality graphite
- For fine grain isostatic graphite: Use ultra fine diamond wire (0.08 to 0.15 mm) with servo tension
- To divide huge blocks: Buy a long travel axis machine with an auto wire feed
- For contour profiles CNC 4 axis or 5 axis system has most choices
- For high-volume runs: opt for automatic loading and online monitoring
What Features Matter Most in a Graphite Profile Machining System?
Selecting the best graphite profile machining system is not about speed. Each characteristic should match your grade. Stable wire tension prevents marking of surface and wire breaking. Simple CNC programming reduces setup time.
グラファイトの粉塵は微細で導電性があり、規制しないと機械部品に損傷を与える可能性があります。精密な公差には、フレームは剛性があり、振動がない必要があります。高品質のグラファイトには、純水クーラントのみを使用してください。金属との接触は許可されていません。.
最新のグラファイト切断装置に必須の機能
- サーボワイヤ張力制御 – 厚い傾斜でのワイヤ切れを防ぎます
- CNCクローズドループフィードバック – 長時間の運転でも精度を維持します
- 集塵機能 – 機械とユーザーを保護します
- 可変送り速度 – 各グラファイトグレードに自動的に適応します
- リモート監視 – 忙しい生産ラインでのダウンタイムを削減します
- 多軸切断 – 複雑な形状やプロファイルに対応します
グラファイトプロファイル切断ソリューションに関するFAQ
グラファイトプロファイル切断ソリューションは、どのグレードのグラファイトを加工できますか？
グラファイトプロファイル切断ソリューションは、すべての主要なグレードのグラファイトを切断できます。微粒、超微粒、高密度等方性、高純度、押出成形、鋳造などの種類が含まれます。ワイヤサイズ、速度、送り速度をグレードに合わせるだけで済みます。微粒および高純度グレードには、より遅い速度が必要です。押出成形グレードは高速切断が可能です。.
- 微粒グラファイト（1〜10 µm）には、超微粒ダイヤモンドワイヤが必要です
- 高密度等方性グラファイトには、サーボ張力と低速送りが必要です
- 高純度グラファイトには、きれいなクーラントと密閉された切断ゾーンが必要です
CNCダイヤモンドワイヤ切断機とグラファイトワイヤソーマシンの違いは何ですか？
どちらもダイヤモンドワイヤを使用してグラファイトを切断します。CNCダイヤモンドワイヤ切断機は、包括的な多軸CNC制御を備えています。複雑な形状に最適です。グラファイトワイヤソーマシンはよりシンプルです。主に巨大なブロックの直線切断やスライスに使用されます。.
- CNC機械は、カスタムプロファイルに対してより柔軟性があります
- Simple cuts are quicker and cheaper on wire saw machines
- Both play well with fine and thick grades if you set them up appropriately.
- CNC systems perform ideal for semiconductor and high-precision tasks
What surface finish can a diamond wire saw for graphite achieve?
Surface roughness (Ra) of 0.4–0.8 m may be achieved via a diamond wire saw for graphite. This is on fine grain isostatic graphite. It is near a milled finish. It generally requires no other finishing. Higher cutting speeds or coarser grades provide Ra values of 1.6–3.2 µm.
- Ultra-fine wire (0.08-0.12 mm) delivers the smoothest result
- Slower feed rate improves finish on any gradient
- High-purity graphite with the tightest grain produces the finest finish.
- Surface polish impacts part life in semiconductor and solar application
What industries use graphite profile cutting solutions the most?
Top users include semiconductors, solar energy, aerospace, EDM tooling and metallurgy. They all employ various grades of graphite. Semiconductor and solar need the most exacting tolerances. They employ super fine, high purity graphite.
- Semiconductor: wafer carriers, heaters and susceptors
- Solar: crystal growth crucibles and supporting fixtures
- Aerospace: brake pads, thermal shields and nozzle inserts
- EDM : fine grain graphite electrodes for moulds
- Metallurgy. Casting moulds and graphite molds
結論
The graphite grade you have determines the machine you require. A bad decision breaks blocks and costs money. Work with an expert who really understands graphite. Vimfun provides a full range of graphite wire saw machines, comprehensive graphite profile cutting solutions, and CNC diamond wire cutting equipment for all grades.
Testing, tech support and bespoke configurations are offered. ヴィムファン is your ideal companion whether you work in semiconductors, solar, aerospace or EDM. Visit Vimfun now and take your production quality to the next level.
