Why does a connectable diamond wire break too early? I have been in the industrial diamond cutting wire business for over 12 years. I’ve seen terrible tension destroy many a career. In
In this article I will describe the correct tension for connectable diamond wire. You’ll discover how pulleys, wire sag and torque all matter. I will also teach you how to choose the correct configuration for your content and to prevent frequent pitfalls.
What Is Connectable Diamond Wire and Why Does Tension Matter?

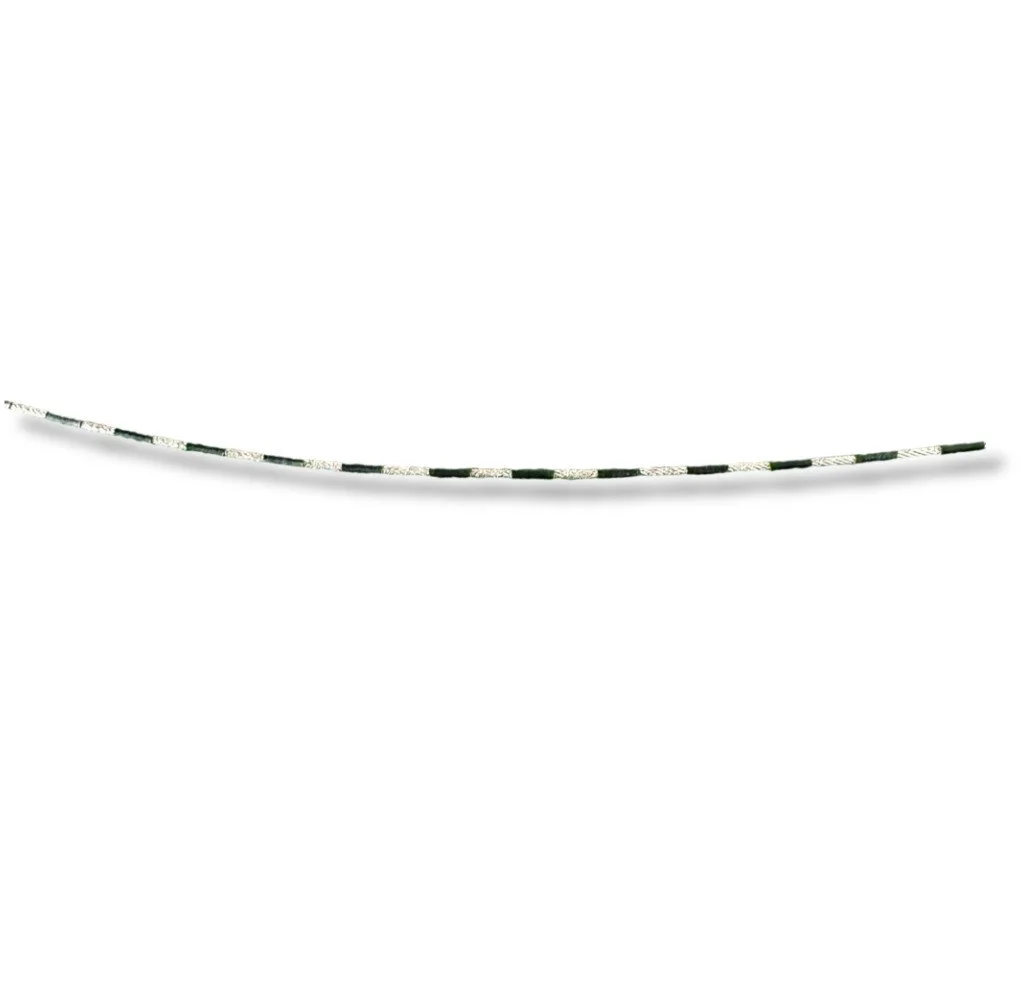

A соединяемый алмазный провод is a diamond wire saw for industrial use. It is built from tiny pieces linked together to create a loop. You may plug it in and out without taking apart your computer. This makes it perfect for blind hole cutting applications and internal hole cutting wire jobs. It can cut in tight places other tools couldn’t get to. The wire has diamond bits in it.
These grind hard materials like ceramics, composites and graphite. Tension is the force that keeps the wire taut on the pulleys. If tension is too low then the wire sags, and cuts are sluggish. Too much stress and the wire might snap or the connection break. Proper tension provides you quicker cuts, longer wire life and clean results.
Diamond Wire System Overview
| Характеристика | Подробности |
| Тип провода | Segmented or endless loop |
| Connector Style | Mechanical crimp or pin lock |
| Режим резки | Rotary, linear, or orbital |
| Common Materials Cut | Ceramics, graphite, composites, stone |
| Tension Range | 50 N to 400 N depending on wire gauge |
| Typical Wire Speed | 10–35 m/s for industrial use |
How Do Pulley Setup and Wire Sag Affect Cutting Performance?
Wire sag and pulleys make a big difference in your cuts. If your pulleys are out of alignment, the wire will wander off center. It will not wear evenly. If the sag between the pulleys is too great, the wire will not touch the cut. This makes the cut less forceful. It also delays the job.
The size of the pulley, the form of the groove, and the alignment determine how tension is distributed in the бесконечная алмазная проволочная система. Too little tension can cause wire sag. It is more prevalent in longer wire spans. The appropriate tension maintains the wire cutting clean and quick. It also protects the connecting joint from stress.
Pulley Diameter and Wire Tension
Larger pulleys = lower bending stress on the wire
- Use pulleys 20-30x wire diameter minimum
- Smaller pulleys = higher fatigue at the connecting point
- The groove width should be equal to the diameter of the wire with ± 0.2 mm
- Crowned pulleys keep the wire aligned on itself
Wire Sag Reference
| Wire Span (mm) | Recommended Tension (N) | Max Safe Sag (mm) | Risk at Low Tension |
| 100–200 | 80–120 N | 2–3 mm | Wire drift, slow cut |
| 200–400 | 120–180 N | 3–5 mm | Vibration, rough surface |
| 400–700 | 180–260 N | 5–8 mm | Connector fatigue |
| 700–1000 | 260–360 N | 8–12 mm | Wire snap risk |
Key Signs of a Wrong Pulley Setup
- The wire jumps out of the groove on cutting
- One side of the diamond segments wears down quicker
- The wire rattles or leaps at the connection
- The sliced surface is wavy or contains diagonal markings
How Does Torque Affect the Life of a Connectable Diamond Wire?
Сайт industrial diamond cutting wire is moved through the material by a rotary force called torque. Too much force might bend or break the wire. This is usually at the connection joint. If the torque is too low the wire will stop. It may also overheat and lose diamond parts.
Correct torque depends on wire composition and kind.
More torque will be needed if you are working with hard ceramics or composites. But it has to fit the stress too. As you cut in composite material cutting wire operations you may have to change the torque. This is due to density variation of the substance. A competent wire saw loop system will always match the torque to the material.
Torque vs. Material Type Comparison
| Материал | Recommended Torque (Nm) | Tension Range (N) | Тип провода |
| Soft Ceramics | 5–10 Nm | 80–140 N | Light segmented wire |
| Hard Ceramics | 15–25 Nm | 160–240 N | Diamond wire for ceramics cutting |
| Графит | 8–15 Nm | 100–160 N | Graphite cutting wire |
| Carbon Composites | 20–35 Nm | 200–300 N | High strength diamond wire |
| Stone / Concrete | 30–50 Nm | 250–400 N | Heavy-duty segmented wire |
Each substance has a distinct torque and tension. Incorrect settings might reduce wire life by 30–50%.
Advantages and Disadvantages of High Torque Settings
Преимущества:
- Cuts quicker on thick and hard materials
- stuff is taken away fast
- Lowers overall job time
Недостатки:
- More prone to damage the connection joint
- Add extra heat at the diamond areas
- decreases the wire life when no cooling is applied
- Causes increased wear on the driving motor
What Are the Best Real-World Uses for Connectable Diamond Wire?
Where fixed-loop wires can’t get to, соединяемый алмазный провод is ideal. You run it through a tiny hole you have pre-drilled. Then you hook it up to the opposite side. The machine ran as a wire saw loop system without opening the machine. This is great for inside contour cutting wire operations. Also it works wonderfully for blind hole cutting solutions.
This wire is used in many industries. These include aircraft, electronics, ceramics and research laboratories. You may connect the cable and disconnect on site. That cuts down on a lot of setup time. This wire allows complete control of loop size, tension and cut route for precision wire cutting tool activities.
Case Studies by Industry
| Industry | Приложение | Wire Type Used | Outcome |
| Аэрокосмическая промышленность | Internal composite frame cuts | Composite material cutting wire | 40% faster than saw blade |
| Электроника | Graphite electrode shaping | Graphite cutting wire | Clean edges, no chipping |
| Керамика | Blind hole internal shaping | Internal hole cutting wire | Tight tolerance achieved |
| Research Lab | Sample sectioning for analysis | Precision wire cutting tool | Micro-level accuracy |
| Stone Industry | Deep contour cuts in marble | Сегментированная алмазная проволока | Zero surface cracking |
Why Connectable Wire Beats Fixed-Loop Wire
- The wire may be loaded without opening the machine.
- Wire length may be adjusted per task
- Works as a continuous diamond wire system with joints that may be linked together
- Good for narrow spots where fixed loops can’t get
- Replace worn pieces without altering the whole wire
Vimfun – A Trusted Source for Connectable-Diamond Wire
Looking for a reputable provider of high strength diamond wire or segmented diamond wire? Check out Vimfun. They provide a broad selection of diamond wire for connection. Their connections engage with tension and do not slide. Their diamond segments are long lasting on both hard and soft fabrics.
Looking for a blind hole cutting solution or an internal contour cutting wire set-up? Vimfun has this. They also provide comprehensive technological assistance. See their goods and receive professional support for your next task at Vimfun.
How Do You Keep the Right Tension During Long Cuts?
The tension in a соединяемый алмазный провод is time-dependent. The heat rises up as the wire cuts. The wire bit a little tighter. Connector joints may become loose. Check tension often. Tension Check before every cut. On lengthy tasks check it again every 15-20 minutes.
High strength diamond wire has superior tension. But all cables sag under stress with time. A cooling fluid helps, too. It cuts down the heat in the wire. This makes the tension more steady during the cut.
Tension Maintenance Checklist
- Check tension using gauge before every work
- Re-tensioning after 5 minutes of cutting
- Check the connecting joint every 30 – 45 minutes
- Clean the grooves of the pulley from dirt
- Change cooling fluid regularly to avoid heat build up
- Keep a record of tension values to monitor wire deterioration over time
FAQs About Connectable Diamond Wire Tension
What is the right tension for a connectable diamond wire?
The right tension will depend on the length, diameter and substance of the wire. Most tasks need 80 N to 360 N of tension. Shorter spans, softer materials, less stress. More for hard materials & lengthy spans. First verify the wire spec sheet. Use a tension gauge before to and throughout every cut.
- Drop low and develop the tension steadily
- Check wire sag – it should be minor but not nil.
- Wire vibrates or drifts? Stop and re-tension
Can I use the same tension for all materials with diamond wire for ceramics cutting?
No. Each material requires its unique tension and torque setting. Ceramics cutting diamond wire requires a little tension and greater force. Graphite requires constant strain, but not much torque. The composite has the largest stress and torque of all.
- Fine-tune tension according to material hardness
- Less stress for softer materials to preserve wire life
- Full tension is required for cutting hard ceramics and stone clean
How does wire sag affect cut quality?
Wire sag lessens the strain on the cut surface. This delays the cut and makes the surface rough. It also wears the wire unevenly. Too much sag causes vibration. This damages the edge of the material pressures the connection joint.
- Maintain wire span within safe sag range
- Use the tension formula for spans greater than 500mm
- Always re-tension first, never begin a cut with obvious sag
What is the difference between segmented and endless diamond wire?
Segmented diamond wire comprises diamond segments separated by gaps. The infinite diamond wire system runs the wire in a smooth continuous loop. Either of these may be connectable wire. You choose the segment spacing and loop size to fit the project.
- Segmented wire is quicker cutting in hard materials
- More even surfaces for precise work come from endless loops
- Connectable joints allow you to change configurations without a new wire
How do I know if I need a blind hole cutting solution?
You require a blind hole cutting solution when the cut begins within a confined area with no open exit. No normal saw or fixed loop of wire can get in there. Through a tiny access hole, you thread connectable diamond wire. Then you plug it in and operate it as usual.
- Ideal for interior frame cuts in aerospace and electronics
- Works in places too narrow for ordinary wire saws
- Wire load, no disassembly machine
Заключение
With the appropriate tension, every cut will be safer, quicker and cleaner. Wrong tension can damage wires and waste money. Factor in the size of your pulleys, your wire span, and material. Check it regularly.
Torque to spec as required. Vimfun is recommended for optimal outcomes. Their connectable diamond wire is made for heavy industrial use. The connections hold tight. Diamond portions last longer. Their staff helps you get the correct system in. Visit Vimfun now, and cut smarter.
