So how can manufacturers cut graphite so neatly and precisely? I have been working in the industrial cutting industry for almost 7 years. I have witnessed the industrial graphite cutting machine increase output.
In this article, I will describe how these devices function. I will also examine the sorts, blade options, heat effects and genuine industrial usage. By the end you will know precisely what to look for.

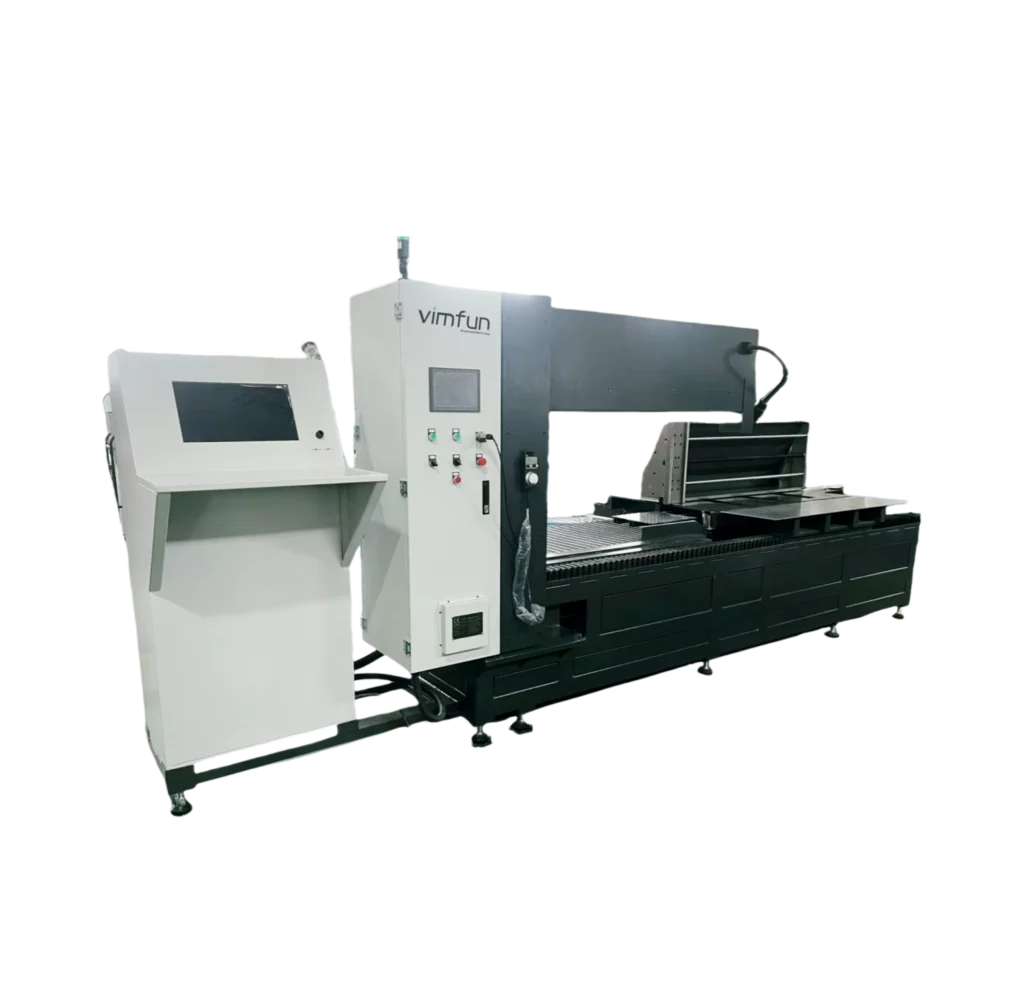

What Is an Industrial Graphite Cutting Machine?
An industrial graphite cutting machine cuts and slices graphite blocks and carbon compounds to precise sizes. “Graphite is brittle, abrasive, produces fine dust. This makes it considerably tougher to cut than metal. These machines are equipped with unique blades, diamond wire or CNC controllers.
They prevent the graphite from breaking. Heat and pressure must be regulated. They are employed in electronics, in the aerospace sector and in furnace parts. A clean cut changes how the item behaves under heat and stress.
Graphite-Cutting Machine – Quick Specs at a Glance
| Feature | Description |
| Cutting Method | Wire saw, blade, or CNC diamond wire |
| Material Handled | Graphite blocks, carbon rods, electrode blanks |
| Precision Level | ±0.01 mm to ±0.1 mm depending on model |
| Dust Control | Built-in vacuum or wet suppression system |
| Automation Level | Manual, semi-auto, or full CNC |
| Common Industries | Semiconductor, aerospace, metallurgy, EDM |
What Are the Main Types of Graphite Cutting Machines?
What kind of graphite-cutting machine is best for your work? They are mostly of three categories. Diamond wire is used in the Graphite Wire Saw Machine and it makes extremely little waste. The Graphite Block Cutting Machine is a straight line cutting blade.
CNC Diamond Wire Saw Machine. It utilises a computer to create intricate forms. Choosing the incorrect kind is waste and bad outcomes. Knowing each kind will help you select the appropriate one.
How Does a Graphite Wire Saw Machine Work?
Graphite Wire Saw Machine use a thin wire coated with diamonds. The wire travels in a loop quickly. The wire goes into the graphite block carefully. The cut is smooth and neat that way. It also saves material, as the wire is quite thin.
- Diamond wire at up to 40 m/s
- Servo motors maintain wire tension
- Coolant spray washes away graphite dust
- CNC settings control cut depth and feed rate
Comparison of Graphite-Cutting Machine Types by Performance
| Type | Kerf Width | Speed | Best Use |
| Graphite Wire Saw | 0.3–0.5 mm | High | Large block slicing |
| Graphite Block Cutter | 1–3 mm | Medium | Straight slab cuts |
| CNC Diamond Wire Saw | 0.3–0.6 mm | High | Complex shapes |
| Band Saw Graphite | 2–4 mm | Low | Rough cutting |
What Is an Endless Diamond Wire Cutting System?
An endless diamond wire cutting system flows in a closed loop. No joints, no weak places. This makes it more robust and dependable than typical wire systems. “It lasts longer and cuts sharper.”
- Wire lasts longer, less breakage
- Tension is kept up all the way through the cut
- Cut faces provide a smoother finish
- Reduced wire change downtimes
How Do Blade, Speed, and Heat Affect Graphite Cutting?
Why is blade type, speed & heat so important in graphite cutting? These three elements govern cut quality. They also influence tool life and surface finish. Excessive speed without cooling creates microcracks. The improper blade will give you chips and jagged edges.
Heat increases near the cut spot. It may damage the surface of the graphite . A decent industrial graphite cutting machine is a balance of three things. It delivers clean and precise cuts every time.
How Does Blade Choice Change the Cut Quality?
The blade type makes a big difference in your outcomes. Graphite is the greatest material for diamond blades. They are tougher than graphite and hence cut neatly. Thin blades are less wearing. The Graphite Slicing Machine employs extremely thin blades or wires for exceptionally flat, smooth cutting.
- Resin bond blades- gentle, suitable for brittle graphite
- Metal bond blades: robust, suitable for dense carbon
- Electroplated diamond blades: incredibly thin, less waste
- Wire blades – great for huge or intricate shapes
Which Blade Cuts Graphite Best? A Quick Comparison
| Blade Type | Best Material | Kerf Loss | Surface Finish |
| Resin Bond Diamond | Fine graphite | Low | Smooth |
| Metal Bond Diamond | Dense carbon | Medium | Good |
| Electroplated Diamond | Thin slices | Very Low | Very Smooth |
| Diamond Wire | Large blocks | Lowest | Excellent |
The appropriate blade saves material and minimises re-work. It also prolongs the life of the equipment. Always align the blade with the graphite type and the finish you want.
What Is Ultra-Flat Graphite Surface Cutting?
Cutting of ultra-flat graphite surfaces produces a micron-flat surface. For semiconductors, moulds, heat spreaders, it is this flatness that is essential. It eliminates the need for further grinding procedures.
Advantages:
- In most situations no more grinding is required
- Very precise size tolerance straight off the machine
- Better surface for glueing or coating
Disadvantages:
- Needs to feed slower
- Higher cost of machine
- Requires a highly solid, vibration free base
What Real Industries Use Industrial Graphite Cutting Machines?
What industries utilise industrial graphite cutting machines the most? It’s a big list. Graphite is used to make EDM electrodes, crucibles, heating elements. It also finds usage in components of nuclear reactors. The sort of cut required will depend on the industry.
Some want speed. Others need strict accuracy. The use of a CNC wire saw for carbon materials may be a successful for aerospace and electrical applications. “Knowing what the use cases are helps the buyers see the real value of those machines.
What Are the Top Use Cases by Industry Sector?
These are the top usage across major industries:
- Semiconductor: Trims graphite wafer carriers to compact sizes
- Aerospace: Carbon composites machined for brakes, rocket parts
- Metallurgy: Machining graphite electrodes for arc furnaces
- EDM Industry: Large blocks make precise electrodes
- Energy: Sawn graphite blocks for nuclear use
Real Results – Graphite-Cutting Machines Across Industries
| Industry | Machine Used | Problem Solved | Result |
| Semiconductor Fab | CNC Diamond Wire Saw | Tight tolerance wafer carrier cuts | ±0.02 mm accuracy, zero cracks |
| EDM Toolmaker | Graphite Block Cutting Machine | Fast electrode blank production | 3x faster output, low dust |
| Aerospace Plant | Endless Diamond Wire System | Complex carbon composite shapes | Smooth edge, no delamination |
| Steel Mill | Automatic Multi-Slice Graphite Cutter | High volume electrode slicing | 60% less waste material |
What Is Automatic Multi-Slice Graphite Cutting?
Automatic multi-slice graphite cutting is multi-slice cutting at the same time. It employs many wire or blade passes in one arrangement. This is a great time saver. It also maintains all the slices the same thickness.
- One arrangement produces 10 to 50 slices at a time
- Less time spent managing between cuts
- Constant thickness throughout the batch
- Ideal for large volume manufacture
How to Choose the Right Low Dust Graphite Cutting Solution?
Graphite dust is a major hazard. It is good and electrically conductive. It damages both humans and machines. Low dust graphite cutting solution is a necessary. Good machines feature wet cutting, hoover systems and sealed covers.
Always verify the dust rating and filter type before purchasing. Best machines employ wet coolant at the cut spot and a HEPA vacuum for fine particles. Every Vimfun machine comes with low dust operation as standard.
- Check all electronics for IP rated covers
- Seek for an integrated HEPA vacuum system
- Wet cutting reduces airborne dust by up to 90%
- Closed-loop coolant systems cut down on mess, waste
FAQs About Industrial Graphite Cutting Machines
What is the best machine for cutting large graphite blocks?
The graphite wire saw machine, also known as the CNC diamond wire saw machine, is ideal for huge blocks. A fine diamond wire is used. That implies reduced material waste. The surface finish is also smoother than is produced by blade based equipment.
- Handling of blocks up to 1000 mm or bigger
- Low kerf means less expensive graphite wasted
- CNC produces consistent output every time
How fast can an industrial graphite cutting machine work?
The speed depends on the kind of equipment and the graphite quality. Wire saws feed the block slowly but the wire speed is high. This provides you speed and precision.
- Wire speed: 20-40 m/sec. (diamond wire systems)
- Feed rate: 0.1-2 mm/min depending on hardness of graphite
- Multi-slice systems cut 10-50 pieces every cycle
What is the difference between a CNC wire saw and a standard graphite saw?
Every cut is computer-controlled on a CNC diamond wire saw machine. A standard saw is hand-set, not as accurate. CNC is more precise and can produce complicated forms.
- CNC cuts complicated forms, not just straight lines
- Tolerances up to ±0.01 mm may be achieved
- Standard saws are cheaper but demand more expertise from the operator
- CNC is superior for large volume and precise operations
Can these machines cut carbon-carbon composites, too?
Yes. Graphite, as well as carbon composites, are cut using several industrial graphite cutting machines. You only need the correct blade and feed speed. The greatest outcomes are with CNC control on composites.
- Use diamond wire or diamond blades plated with
- Reduce feed rate to prevent layer splitting
- Wet cutting is ideal for composite materials
- The CNC control delivers the most uniform outcomes
Conclusion
This industrial graphite cutting machine is a big investment. It impacts the cut quality, material costs and the worker’s safety. The blade, its speed and the heat all matter. All three are done in one system by today’s machines. If you require ultra-flat graphite surface cutting or automatic multi-slice graphite cutting, you may find a solution.
Vimfun provides the complete spectrum of professional assistance and proven outcomes. Come to Vimfun and get the appropriate industrial graphite cutting machine for your requirements now.
