How do factories manage to cut hard graphite cleanly and easily on a daily basis? I have worked in the field of vertical graphite cutting machines for eight years. In that time, I have encountered both real problems and simple solutions. I have worked in busy factories with simple tools and CNC machines.
In this article, I will explain everything in very easy words. This machine’s purpose and working will be explained to you. Parts, design, and the reasons for its efficacy will be laid forth for you. Simple tables and examples will also be provided. Learn why Vimfun is the best option and how to pick the correct machine at the end.

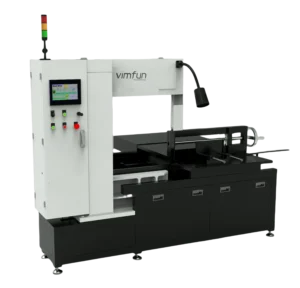

What is a Vertical Graphite Cutting Machine
A vertical graphite cutting machine is used to cut graphite blocks, sheets, and plates. The tool adjusts its height. There is no movement of the graphite on the surface. This ensures the machine remains stable and makes precise cuts. Graphite requires care when cutting, as it is delicate yet dusty.
Easy and quick, a graphite automatic cutting machine can get the job done. Many machines follow a set path because they use CNC. If you need to make the same part over and again, you may utilise this. These instruments are effective, safe, and easy to use. They make superior parts with less waste.
Vertical Graphite Cutting Machine Overview
Feature | Description | Benefit | Industry Use |
Machine Type | Vertical CNC system | High precision | Electronics |
Cutting Tool | Diamond/Carbide tool | Smooth cutting | Mold making |
Control | CNC automation | Repeat accuracy | EDM production |
Material | Graphite blocks/sheets | Flexible use | Industrial sectors |
How Does a Vertical Graphite Cutting Machine Improve Cutting Accuracy?
In what ways does the cutting precision vertical CNC graphite cutter improve? Just look at the solution. The tool is solid and trustworthy. The vertical layout minimises vibration. Cuts are better when there is less shaking.
Precise ways are chosen by the CNC system. Every every cut is unique. The sturdy the basis ensures that the machine remains stable. Regular dust collection ensures a clean area. Tools perform better in a clean environment. With all these elements in place, precision is improved.
Accuracy Factors
Many specifics effect precision. With the right graphite slab cutting equipment and a sturdy built, a vertical graphite cutting machine can produce high precision. Using blades allows for clean cuts. The shaking stops in a sturdy frame. The work is kept clean by dust systems. Tools have a longer lifespan when cooled. Better results are achieved with all of these.
Factor | Role | Impact | Result |
CNC System | Controls motion | High precision | Clean cuts |
Tool Quality | Sharp cutting | Less wear | Smooth finish |
Machine Frame | Stability | Low vibration | Better accuracy |
Dust Control | Clean area | Less damage | Longer tool life |
Key Benefits
- Clean and exact cuts
- Less material waste
- Works for long time
- Same size every time
Comparison
Machine Type | Accuracy | Speed | Cost |
Vertical Machine | High | Medium | Medium |
Horizontal Machine | Medium | High | Medium |
Manual Cutting | Low | Low | Low |
Vertical graphite cutting machines give better accuracy. They are not the fastest, but they give clean and exact results. This machine is very unique and uses advanced technology, and we are offering a great price.
Case Studies
Industry | Use Case | Result | Benefit |
Electronics | Graphite parts | Clean edges | High quality |
Mold Making | Block cutting | Exact size | Less rework |
EDM | Electrode cutting | Smooth finish | Better spark |
Energy | Graphite plates | Stable cuts | Long life |
What Are the Key Design Features of a Vertical Graphite Cutting Machine?
What makes a graphite block cutting machine strong? The answer is its design. The vertical shape keeps it balanced. The spindle holds the tool and moves smoothly.
CNC control makes work easy. Dust systems keep the air clean. Cooling systems protect the tool. All these help the machine work better and last longer.
Design Elements
The Graphite machining vertical system is made for easy use. A strong frame gives stability. A good spindle gives smooth cutting.
Simple controls make it easy for workers to use. Dust systems keep the machine clean. This makes work safe and easy.
Design Features
Feature | Function | Advantage | Output |
Frame | Supports machine | Stability | Accurate cuts |
Spindle | Tool rotation | Fast cutting | Smooth finish |
CNC Control | Automation | Easy use | Repeat work |
Dust System | Removes dust | Clean area | Safe work |
Advantages & Disadvantages
Advantages:
- High precision
- Strong design
- Easy to use
- Long life
Disadvantages:
- Higher cost
- Needs trained user
- Needs cleaning
Comparison
Feature | Vertical Machine | Basic Cutter | Advanced CNC |
Precision | High | Low | Very High |
Control | CNC | Manual | CNC AI |
Cost | Medium | Low | High |
Efficiency | High | Low | Very High |
Vertical graphite cutting machines give good value. They are better than basic tools and work for a long time.
Case Studies
Company Type | Machine Use | Output | Result |
Small Factory | Sheet cutting | Medium | Cost saving |
Large Industry | Block cutting | High | Mass production |
Lab Use | Precision parts | Low | High accuracy |
EDM Shop | Electrode cutting | High | Smooth finish |
Why Is Efficiency Important in Graphite Cutting Machines?
Why is efficiency important in a vertical graphite milling machine? Because it saves time and money. A fast machine makes more parts. It also makes less waste.
CNC systems choose the best cutting path. This saves time. Dust systems help the machine run smooth. Good efficiency means more profit.
Efficiency Drivers
Efficiency in a graphite sheet cutting solution depends on speed and tool life. Fast speed gives more output. Automation reduces work. Long tool life saves cost. Cooling helps tools stay sharp. These improve performance.
Efficiency Factors
Factor | Role | Benefit | Result |
Speed | Faster cutting | More output | High productivity |
Automation | Less manual work | Time-saving | Easy operation |
Tool Life | Longer use | Cost saving | Stable cutting |
Cooling | Heat control | Better tool life | Smooth cuts |
Key Points
- Fast work gives more output
- Automation saves time
- Less waste means more profit
- Stable work reduces errors
Comparison
Machine | Efficiency | Energy Use | Output |
Vertical CNC | High | Medium | High |
Old Machine | Low | High | Low |
Manual Tool | Very Low | Low | Very Low |
Efficient vertical graphite cutting machines help factories work faster and better.
Case Studies
Sector | Machine Type | Result | Gain |
Automotive | CNC cutter | Fast output | High profit |
Electronics | Precision cutter | Clean parts | Better quality |
Energy | Plate cutting | Stable cuts | Long life |
Aerospace | Advanced CNC | Exact parts | Safety |
FAQs
What is a Vertical Graphite Cutting Machine?
This is a machine specifically designed to cut graphite vertically. Big effect from a simple concept. Every day usage in the production results in clean cuts, time savings, and easy work.
- Cuts blocks, sheets, and plates
- Gives smooth and neat finish
- Used in many industries every day
Where is it used?
Actually a few places have this type of machinery. It makes it easy to shape graphite parts in any size shop or factory. The findings are dependable, and the usage is popular.
- Electronics production
- Mold making work
- EDM electrode cutting
What are the main advantages?
Better cutting, reduced waste, and easier work efficiencies are just a few of the many benefits offered by this equipment. In the manufacturing sector, it helps in raising standards while cutting costs.
- High cutting accuracy
- Less material waste
- Easy and fast operation
Is it better than manual cutting?
Yes, for the most part. Manual work is work-intensive and prone to human mistake. In addition to being quicker and more stable, this machine always yields the same results.
- More precise results
- Faster output
- Better surface quality
What tools are used?
Here, many tools perform the cutting action. A few of them are powerful. The blades of some of them are quite pointed. They are all necessary for the machine to cut graphite smoothly and cleanly.
- Diamond cutting tools
- Carbide tools
- CNC control system
How to maintain it?
To be able to extend the life of the tools, it is crucial to perform proper maintenance. Keeping the machine’s daily safety and the best results requires regular inspection and cleaning.
- Clean dust daily
- Check tools often
- Maintain the CNC system
Why choose CNC machines?
The CNC machines are very intelligent and self-sufficient. Because of them, less human work is required, precision is improved, and the result is consistent every time.
- Automatic operation
- Repeat accuracy
- Saves time and labour
Conclusion
A vertical graphite cutting machine may look simple, but it does a big job in modern factories. You can cut it cleanly. Very quickly, it performs it. With little to no effort, it helps in waste reduction. Because of the vertical design’s security, every cut is clean and precise.
This very small feature increases the bar for product quality in the long run. Use it for hours without strain since it is both powerful and simple to use. Investing in the correct machinery is important for successful manufacturing. You may see Vimfun here.
Simple, reliable machines designed for actual industrial use are what they sell. The machines they provide reliable results, and their customer service is top-notch.
