A carbon brush manufacturer recently asked us a blunt question: can diamond wire actually cut copper graphite with 75% copper content, or does the wire load up with smeared copper within the first few cuts? Fair question. Metal-graphite composites sit in an awkward zone for copper graphite cutting — too metallic for standard graphite parameters, too abrasive and friable for conventional metal sawing. This article walks through the actual trial we ran on their material, the numbers we measured, and why the customer ended up ordering an SV series vertical wire saw even though our cutting speed on the high-copper grade was no faster than their existing process.
That last part is worth repeating: on 75% copper graphite, we did not win on speed. We matched it. The purchase decision came down to kerf width, material recovery, operator safety, and automation — and for anyone slicing silver- or copper-loaded brush blanks, those factors dominate the cost equation anyway.
Why Is Copper Graphite So Difficult to Cut Cleanly?
Carbon brushes for low-voltage, high-current applications — forklift traction motors, starter motors, grounding brushes — use copper graphite grades running anywhere from 20% to 80% copper by weight. The copper raises current-carrying capacity; the graphite provides lubrication against the commutator or slip ring. Dimensional and tolerance requirements for these components are governed by standards such as blank” , so the blanks have to come off the saw flat and square enough for downstream precision grinding.
The manufacturing problem is that the two phases fail differently under a cutting edge. Graphite fractures and powders. Copper deforms plastically and smears. Run a toothed blade through a 75% Cu block and you get three familiar symptoms:
- Blade loading. Ductile copper packs into the gullets and onto the cutting edges, so cutting force climbs and surface quality degrades cut by cut.
- Edge tearing. The blade pulls copper particles out of the graphite matrix at the exit edge instead of shearing them, leaving ragged edges that consume grinding stock.
- Wide kerf. Circular blades sized to survive the copper content typically run 2–3 mm kerf. On a material where the copper powder alone can represent the majority of raw material cost, every millimeter of kerf is money converted directly into swarf.
One thing that trips up a lot of first-time evaluators: they benchmark copper graphite cutting methods on speed alone. For electrographite that logic mostly holds. For metal-loaded grades, material recovery per block is usually the bigger lever — we will put numbers on that below.
There is also a process-control angle that gets overlooked. Because blade loading is progressive, a blade process cuts differently on Monday morning than on Friday afternoon. Slice thickness drifts, edge quality drifts, and the grinding department absorbs the variation with extra stock allowance. A process whose cutting edge condition stays stable — or is replaced as a cheap, quick-change consumable — removes that drift from the line.
The Trial Material and Setup
The customer supplied production blocks of two materials from their standard mix:
| Vật liệu | Copper content | Block format | Requirement |
|---|---|---|---|
| Copper graphite | 75% Cu | Rectangular blocks, ~200 mm length class | Slabs and strips, min. 8 mm slice thickness |
| Natural graphite | 0% | Rectangular blocks, ~210 mm length class | Batch slicing into brush blanks |
Their incumbent process was conventional blade sawing. The acceptance criteria we agreed on before the trial: dimensional consistency adequate for direct feed into precision grinding, no edge tearing on the copper phase, and a realistic wire-life observation — not a three-cut demo.
We ran the trial on a vertical block-slicing machine from our SV family, using an vòng dây kim cương mạ điện in the 0.6–1.0 mm diameter class that we use for graphite work. The closed-loop wire runs unidirectionally at high linear speed rather than reciprocating, which matters for metal-loaded materials: each diamond grit passes through the kerf in one direction with consistent chip clearance, and the loop’s full circumference shares the wear instead of concentrating it on a short reversing segment.
Copper Graphite Cutting Results at 75% Cu
Feed rate on the 75% copper grade settled at 8 mm/min. To be direct about it: that is comparable to what the customer was achieving with their existing blade process. If your only metric is millimeters per minute on high-copper material, a diamond wire saw will not transform your throughput on that specific grade. Anyone who tells you otherwise hasn’t cut much 75% Cu.
What changed was everything around the feed rate:

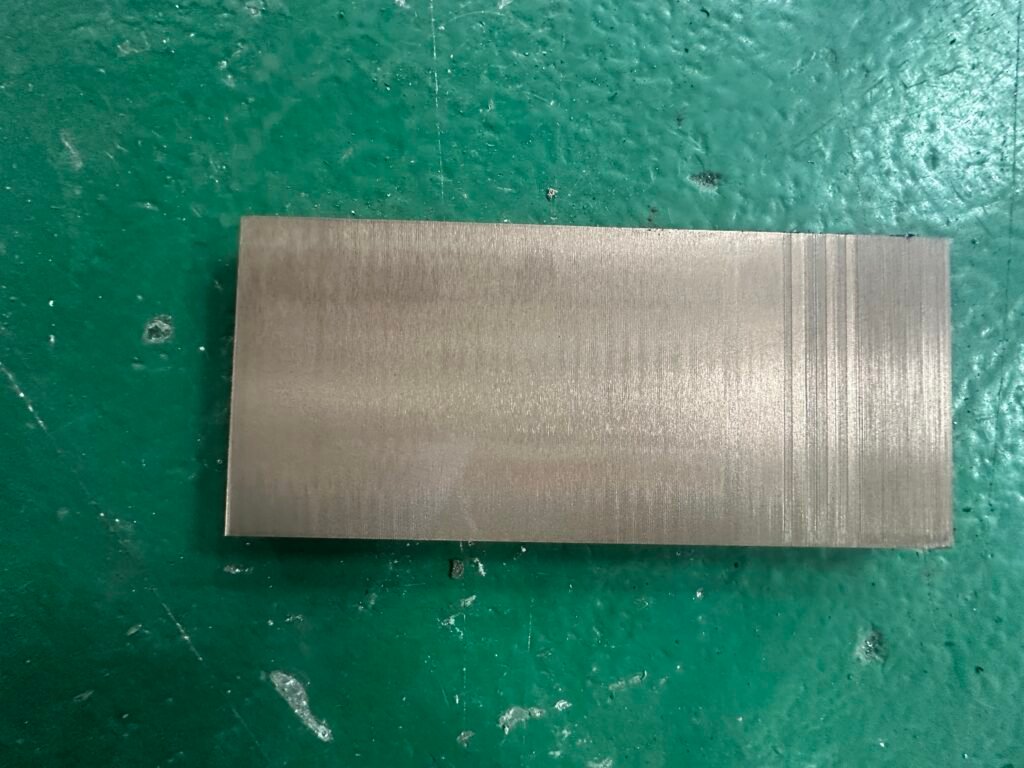

Kerf width dropped to roughly 1 mm, from the 2.5–3 mm typical of blade sawing. On an 8 mm finished slice, moving from a ~3 mm kerf to a ~1 mm kerf takes the material consumed per slice from ~11 mm down to ~9 mm. Across a block, that is roughly one additional slice recovered for every five cut — a 15–20% improvement in usable yield from the same purchased block. At 75% copper content, the raw block price is driven by copper powder and the mixing/pressing/sintering behind it, so yield improvement flows almost directly to material cost per brush blank. This was the line item that carried the purchase decision.
Edge condition improved. The fine exposed diamond grit shears the copper phase rather than tearing it out, so the slabs came off the saw with clean edges and went to grinding without a deburring step. Less grinding stock allowance also feeds back into the yield math above.
No progressive loading failure. Copper smearing on the wire is the classic failure mode people expect in copper graphite cutting, and we monitored for it specifically. With adequate wire speed and controlled feed, the unidirectional loop kept clearing the kerf and cutting force stayed stable across the trial rather than climbing the way a loaded blade does. Fair warning: this is parameter-sensitive. Push the feed rate to chase throughput on high-copper grades and you can load any abrasive tool. The 8 mm/min figure is where the process ran stable and repeatable, and we would rather quote that number than a hero-run peak.
What Happened on Natural Graphite?
The second half of the trial was the opposite story. On natural graphite, diamond wire is simply a faster process than blade sawing — pure graphite is close to an ideal material for it, cutting dry with feed rates several times what the copper grade allows. Our standard dry-cutting parameters for graphite run wire speeds of 40–70 m/s with feed rates 100mm/min that make blade sawing look slow.
More importantly for a brush manufacturer, the vertical machine format allows batch slicing: multiple blocks fixtured side by side and cut in a single pass, with slice thickness set once on the controller and repeated automatically. The customer’s natural graphite line went from cutting one block at a time with an operator at the machine to unattended multi-block slicing runs. For a product line where the same blank geometry repeats in volume, machine-hours per thousand blanks fell substantially even before counting the kerf savings.
So the honest summary across the material mix: on high-copper grades, equal speed but significantly better yield and edge quality; on graphite grades, better on essentially every axis. Which of those matters more depends entirely on your production mix — a shop that is 80% electrographite sees this differently than one specializing in metal-graphite contacts.
Dust, Safety, and Why Automation Mattered Here
The wire saw configuration changed the risk profile in two ways. First, the cutting zone is enclosed and runs with dust extraction — graphite cuts dry on our machines, so extraction handles the fines at the source instead of letting them settle across the shop. Second, and this is the part the customer’s production manager cared about most: once the block is fixtured and the recipe is loaded, the operator is not near the cut. Slice thickness, feed, and cycle count run from the touchscreen. An exposed spinning blade in a manual sawing operation is a different conversation with your safety auditor than an enclosed wire running in a guarded envelope.
Graphite dust is the operational headache nobody puts in the brochure. It is conductive, it migrates into electrical cabinets, and occupational exposure to graphite dust is regulated in most jurisdictions. Blade sawing throws coarse dust and chips at high energy in an open cutting zone, which is also where the operator’s hands are.
We would not claim the wire saw eliminated their dust management workload — extraction filters still need servicing, and copper-graphite fines are heavier and settle faster than pure graphite dust, which took some adjustment of the extraction setup during commissioning. But moving the operator out of the cutting zone and enclosing the dust source was, in their words, the difference between managing a hazard and engineering it out.
Limitations and Trade-Offs
A few boundary conditions worth stating plainly, because this process is not a universal answer:
High-copper feed rates are what they are. 8 mm/min at 75% Cu is a stable, production-worthy number, but if your business case requires a step-change in throughput on 70–80% copper grades specifically, diamond wire copper graphite cutting alone will not deliver it. The case for the machine rests on yield, quality, and labor — not raw speed on that material.
Coolant strategy differs by material. Graphite grades cut dry with extraction on our machines. Some metal-loaded grades benefit from light lubrication depending on metal content and particle size, and that decision affects downstream cleaning of the blanks. It is a commissioning-stage parameter, not a catalog checkbox — another reason we insist on cutting your actual material first.
Wire is a consumable. Cutting metal-loaded composites wears wire faster than cutting pure graphite. Wire life on graphite runs on the order of a week of single-shift use; on high-copper material, plan for shorter intervals and cost it into your per-blank calculation. We provide the wear data from sample cuts precisely so this number goes into the spreadsheet as a measurement, not a guess.
Very high silver or copper loadings need individual validation. Every metal-graphite grade behaves slightly differently depending on particle size, density, and sintering. We had cut copper graphite before this trial; we still ran the customer’s actual material before quoting, and we would do the same for a silver graphite grade or an 80% Cu grade. Datasheet similarity is not process validation.
Batch slicing gains depend on block standardization. The unattended multi-block runs on natural graphite worked because the customer’s blocks were dimensionally consistent. A shop cutting one-off block sizes captures the kerf and safety benefits but less of the automation benefit.
Next Steps If You Cut Metal-Graphite Composites
If you are evaluating copper graphite cutting for brush blank production, do three things before comparing any equipment quotes. First, calculate your current material recovery: slices actually obtained per block versus the theoretical maximum at zero kerf — on metal-loaded grades this number is usually worse than anyone in the building assumes. Second, get your highest-metal-content grade cut as a sample, not your easiest one; any process looks good on electrographite. Third, ask for measured wire or blade life on your material so consumable cost enters the comparison honestly.
We run free sample cuts on customer-supplied blocks as standard practice — you get back the cut slabs plus measured feed rate, kerf, and wire wear data for your own math.
Send us your block dimensions and material grades, and we will confirm the right machine configuration for your cắt than chì application. Contact: levy@endlesswiresaw.com.
