Can a metal-cutting spindle survive a week of graphite work? Or does the dust eat it up in hours? Graphite is not cut like wood or metal. Its dust is coarse, its structure fragile. It needs a different kind of stress spindle. Choosing the wrong CNC machine for graphite often leads to rapid bearing wear, chipped parts and short tool life in shops.
This guide is all about RPM, torque and stability. All three of these factors will determine whether a spindle can do graphite work. It also teaches you how to select a machine that suits your shop needs.
Why Graphite Machining Requires a Different Approach
How Machining Graphite Differs From Metal or Wood
Graphite is brittle, not bendy, so machining it is not like cutting metal or wood with a CNC machine for graphite. A cutting edge bends metal. Instead, graphite breaks into small pieces. Not shavings, not curls, but fine dust. That dust is like a gritty powder. This changes the way the spindle and enclosure need to work.
Why Abrasive Dust Impacts Spindle Wear
If there is rough graphite dust on the spindle, it is going to wear out after a while. It gets on seals, bearings and rails. Short lives are associated with spindles with open bearings or weak dust extraction.
- Dust enters into open bearing housings
- Fine bits mixed with oil make a grinding paste
- Open rails collect dust film, accuracy suffers
- Normal shop vacuums can’t get the little bits
Where Advanced Graphite Machining Is Used Most
The most obvious examples of advanced graphite machining are EDM electrode work, mould making, and aerospace parts. Electrode work requires tight tolerances. The shape of the electrode becomes the shape of the mould.
What Spindle Specs Matter Most for a CNC Machine for Graphite?
- RPM Range and Why Higher Isn’t Always Better
Graphite needs the right RPM for the size of the tool and the detail. It’s not a race to see how fast you can go. Fine detail work often runs well in the 12,000-24,000 RPM range. Too fast and the edges burn. Too slow leaves a torn, rough surface.
- Torque Requirements for Dense Graphite Grades
Dense graphite needs steady torque over max speed. High density, fine grain graphite resists the cutting edge more than softer grades.
- Spindle Stability and Vibration Control
The cleanness of the surface of the final product depends on the stability of the spindle. Even a little shake leaves marks on the part. This is because graphite chips do not flex. Good bearings and a stiff housing minimise this shake.
RPM: Finding the Right Speed for Graphite
How RPM Affects Surface Finish on Graphite
RPM affects the cleanliness of each graphite cut. More RPM and the right feed rate will give a smoother finish.
Risks of Running Too Fast or Too Slow
Too fast can burn out bearings fast and ruin tools from heat. If you go too slow, you get a rough finish and more dust. Here are typical problems at either end.
RPM and Feed Rate Problems
| Condition | Common Result | Likely Cause | Fix |
| RPM too high | Chipped edges | Too much heat, tool bends | Lower RPM or feed rate |
| RPM too low | Rough surface | Poor chip cut | Raise RPM slowly |
| Feed too fast | Tool breaks | Too much load on tool | Slow feed, keep RPM steady |
| Feed too slow | Burn marks | Heat from friction | Raise feed a little |
Matching RPM to Electrode and Mold Applications
Electrode work generally requires higher RPMs with light cuts. You can run mould parts at a lower RPM and make deeper, steady passes.
Torque: Why It Matters More Than Raw Speed
How Torque Handles Dense or Fine-Grain Graphite
Torque keeps the edge of the cutter going through the material without stopping. This is particularly important for dense, fine-grain graphite for precision parts.
Torque Drop-Off at High RPM Explained
Torque drop off at high RPM is normal. Most spindle motors sacrifice torque for speed once the RPMs get high enough. Look at the torque curve of a spindle, not just the top RPM, to see if it will work well with graphite.
Balancing Torque and RPM for Consistent Cuts
Torque vs. RPM is a balancing act, spindle power has to match the type of graphite and the size of the tool. Softer graphite will run higher RPM with lower torque. Dense graphite requires steady torque and lower RPM.
Spindle Stability and Its Role in Precision
Why Vibration Control Protects Fine Detail Work
Graphite is more prone to chatter marks than metal so vibration control is important. This is most apparent on electrode tips and mould textures.
Bearing Types That Improve Long-Term Stability
The type of bearing influences the life of the spindle accuracy under a rough abrasive load. Sealed high precision bearings are better dust shields than open. For this reason ceramic hybrid bearings are also frequently used in industrial spindles.
How Dust Containment Design Affects Spindle Life
Good dust containment keeps rough particles off moving parts. A full enclosure with integral extraction provides much better bearing protection than an open frame.
Best CNC Machine for Graphite: What to Look For
Dust Collection and Enclosure Requirements
A good graphite machine needs to be built with a sealed enclosure and actual dust extraction. A shop hoover nearby isn’t sufficient. Good containment also protects the operator because graphite dust can irritate the lungs.
Best Graphite Shaping Machine Suppliers to Consider
The best graphite shaping machine suppliers build sealed spindles and tools ready for graphite. They don’t take a general purpose machine and tailor it afterwards. Some warranties exclude graphite from warranty. Ask about warranty conditions on abrasive materials.
Features That Separate Entry-Level From Industrial Machines
- Entry-level machines often have open or semi-open frames.
- Industrial machines use full enclosures with powerful extraction
- Industrial spindles generally have tighter tolerances
- Tool changers and other automation are found mostly on industrial models
Small CNC Machine for Graphite vs Industrial Systems
- Where Benchtop Machines Fit: Use Cases and Limits
A small benchtop machine is a good choice for test electrodes and low volume mould work. It is also suitable for shops with small area of floor. Its restrictions seem to be in dust control and the length of time the spindle can run without a break.
- Industrial Systems for High-Volume Electrode Production
Industrial systems are a combination of automation, large enclosures and powerful spindles. They are more expensive to start, but cheaper per part at scale.
- Choosing Based on Shop Size and Output Needs
Not just price. Part volume, part size and floor space, all come into play on the decision between small and industrial systems.
Machine Class Comparison
| Machine Class | Typical RPM Range | Torque Level | Price Tier | Best Use |
| Benchtop / Small | 10,000–18,000 RPM | Light to medium | Lower cost | Test parts, low-volume work |
| Mid-Range | 15,000–24,000 RPM | Medium to strong | Mid cost | Regular electrode and mold shops |
| Industrial | 18,000–30,000+ RPM | Strong, steady | Higher cost | High-volume production |
What Affects the CNC Machine for Graphite Price?
- Spindle Quality and Enclosure Design Costs
The main things that make the price of a machine go up are the quality of the spindle and the design of the enclosure. Sealed high precision spindles are more expensive to build than open basic spindles.
- Automation and Tool Changer Features
Automation costs more up front, but it lowers the amount of labour per part. High volume stores recover this cost faster.
- New vs Used Machines for Sale
A CNC machine for graphite for sale can be found new from a supplier or used from an equipment reseller. Used machines are cheaper to start with but may need a spindle check before graphite work.
Frequently Asked Questions
What is the best RPM for machining graphite?
The optimal RPM for cutting graphite is generally in the range of 12,000 to 24,000 RPM. Depends on tool size and level of detail.
- Fine detail work: light cuts, higher RPM
- Roughing passes: slow RPM, deep cuts
- Always check the tool maker’s own guide first
Do you need special dust collection for machining graphite?
Yes, graphite machining requires special dust collection. Most shop vacuums aren’t designed to pick up the smallest, most abrasive dust particles.
- The fine graphite dust can irritate the lungs.
- Normal filters clog quickly with graphite dust
- Negative pressure enclosures are most effective
What is the price of CNC machine for graphite?
The price depends on the class of the spindle, the design of the housing and the degree of automation of the machine. Small benchtop units are at the low end. At the high end are full industrial systems.
Can a small CNC machine handle graphite electrode work?
Yes, a small CNC machine can do graphite electrode work for test and low volume runs. Its limits are found in dust control, not part precision.
What is the torque range for dense graphite grades?
Steady torque is needed in the mid-RPM range for the dense graphite. There is no one set number, as it depends on the size of the tool and the depth of the cut.
Difference between entry level and industrial graphite machines?
The main differences are in the design of the enclosure, spindle class and the level of built-in automation. Industrial machines do more volume with less hand work.
Conclusion
For the CNC machine for graphite, RPM, torque and spindle stability must work together. If you focus on just one, you risk a bad finish or early spindle wear. Shops that plan for dust control, check torque curves and pick the right machine class get consistent results over time.

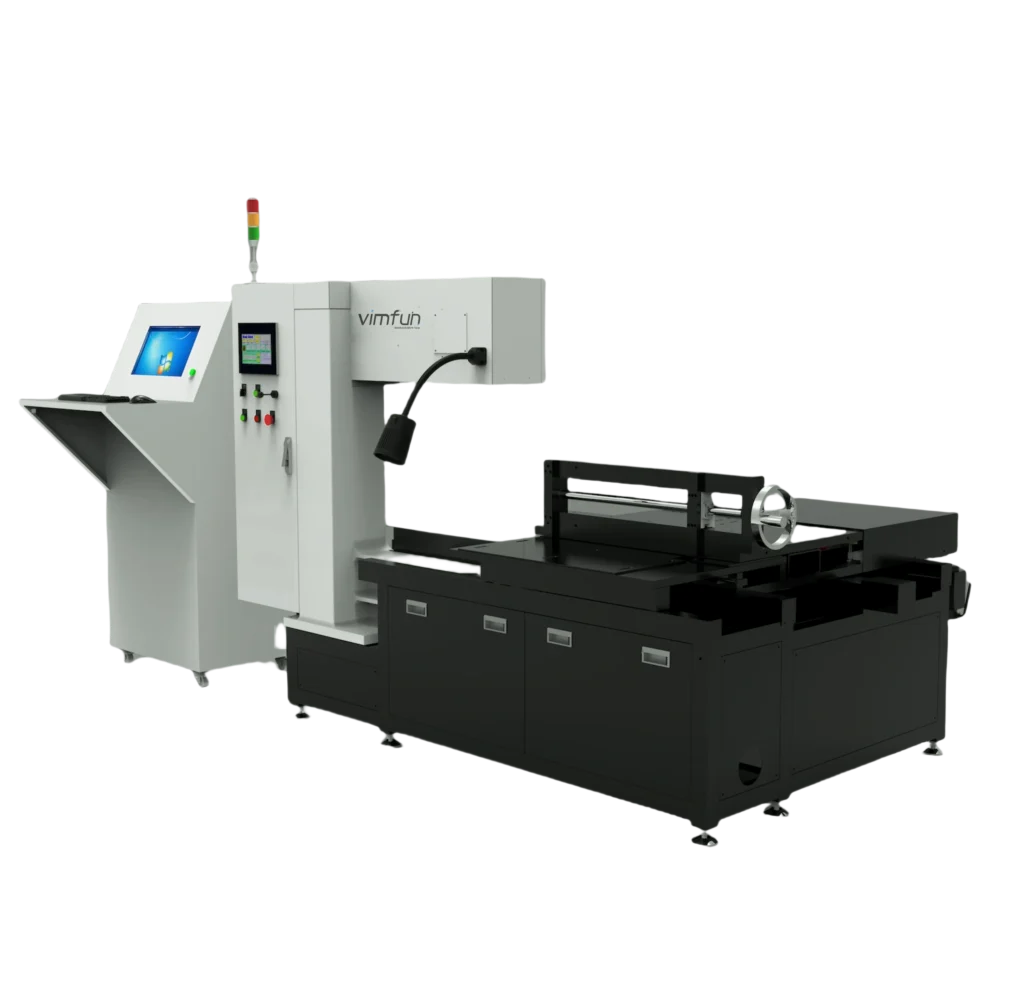

If shops are comparing options, Vimfun is worth a look. This is for buyers who want spindle and enclosure specs built for the rough dust of graphite, not a metal working machine that was adapted later.
